FORGED PISTON SET 2JZ-GTE 86.50mm CH34.00 (STD)

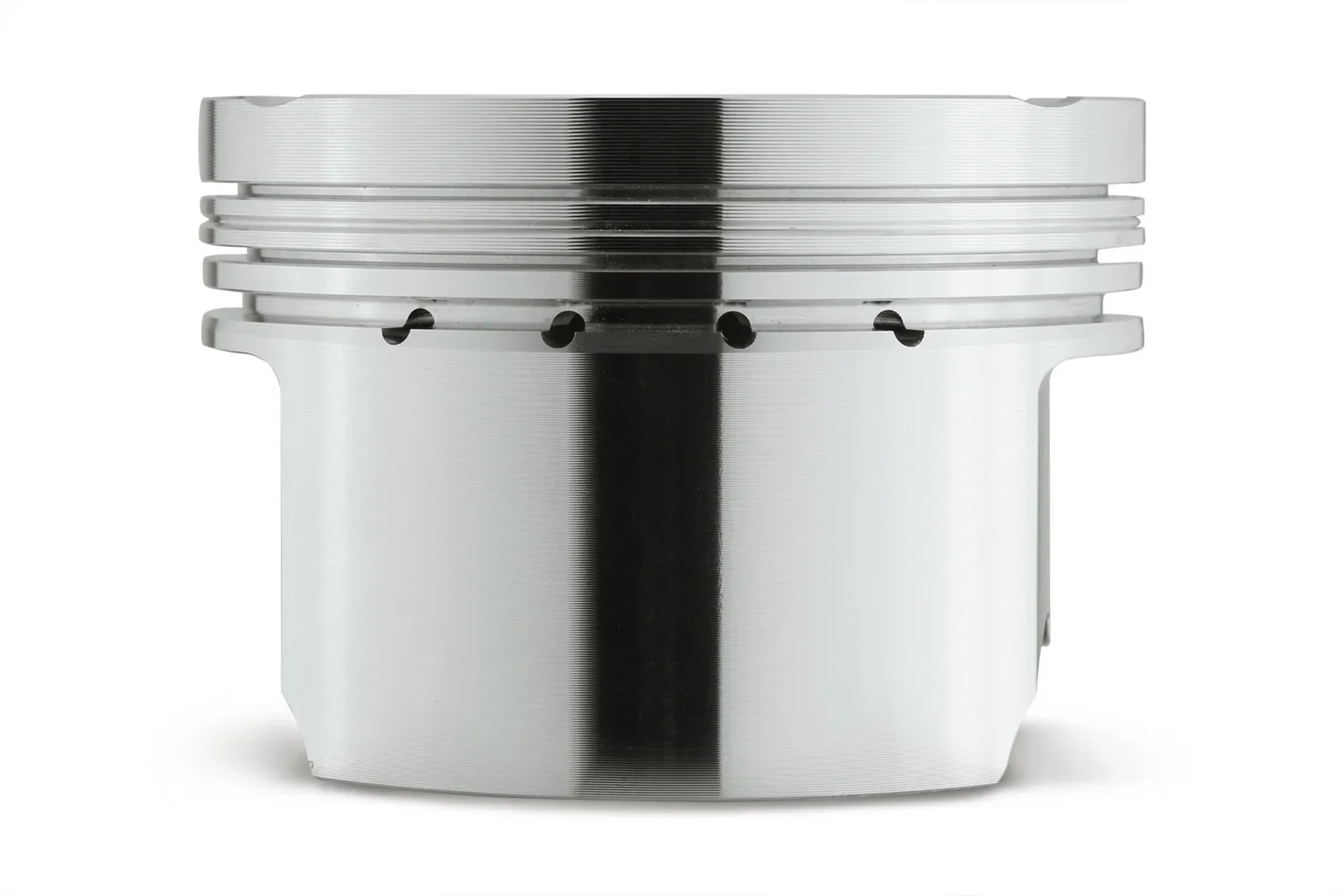

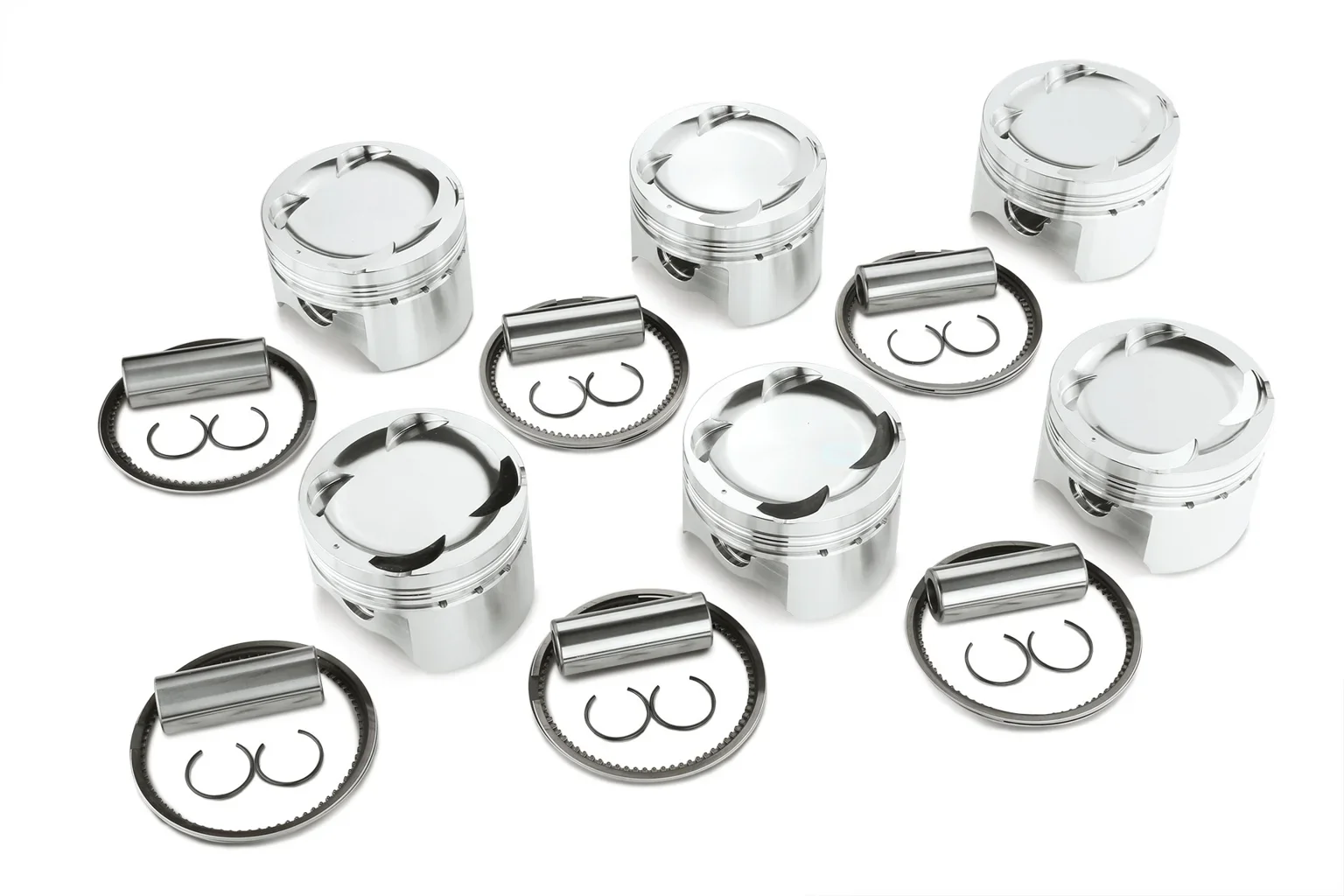

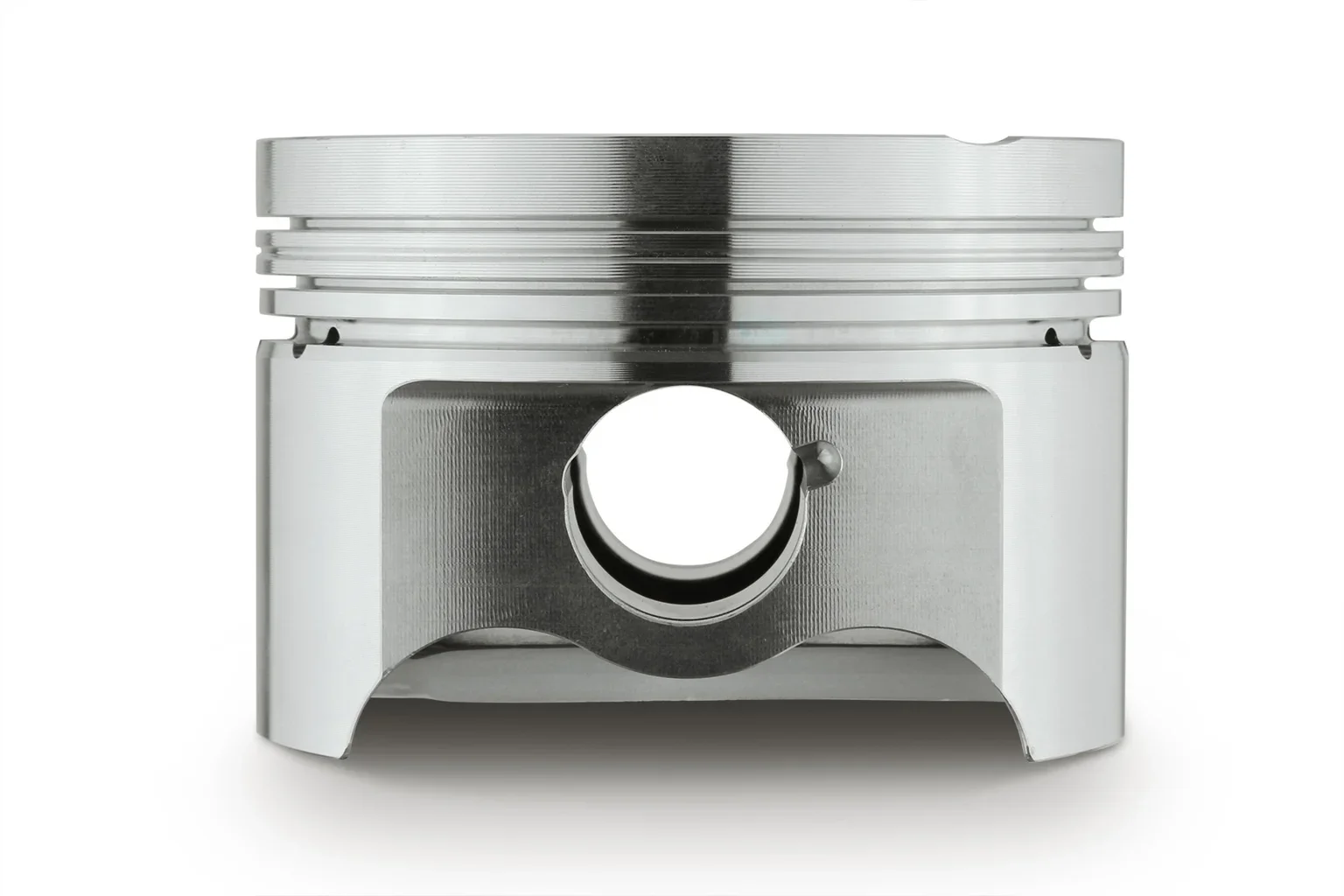

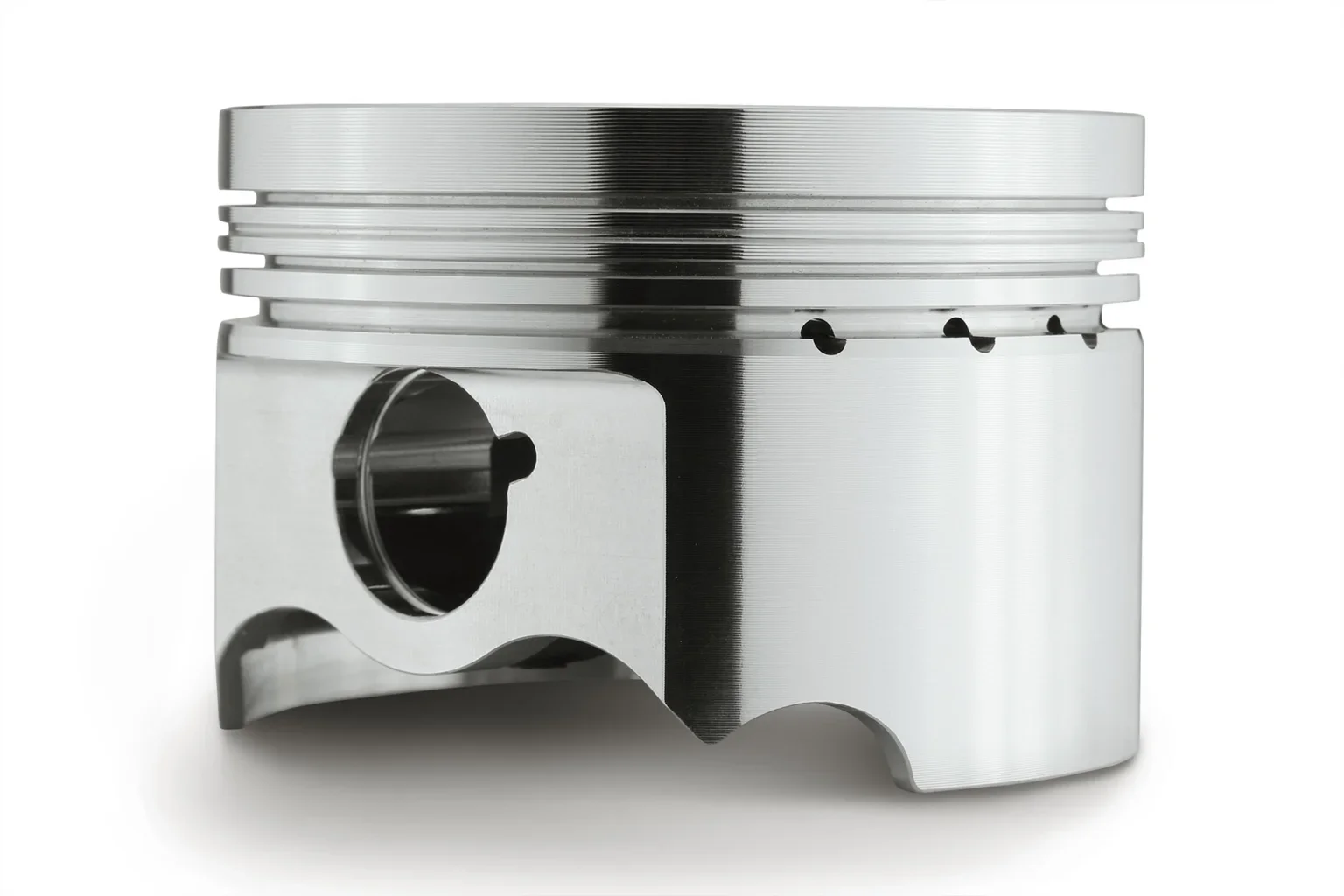

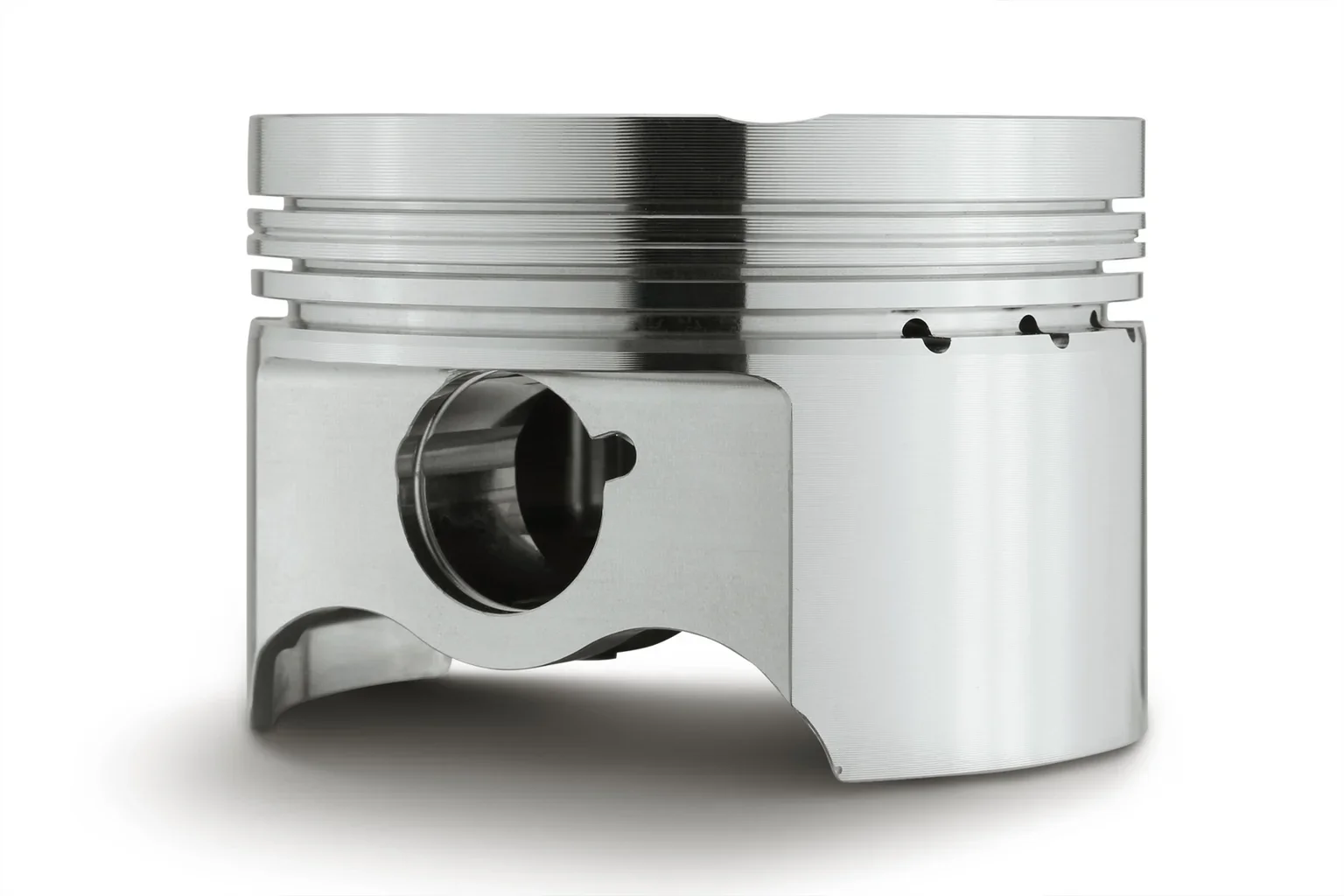

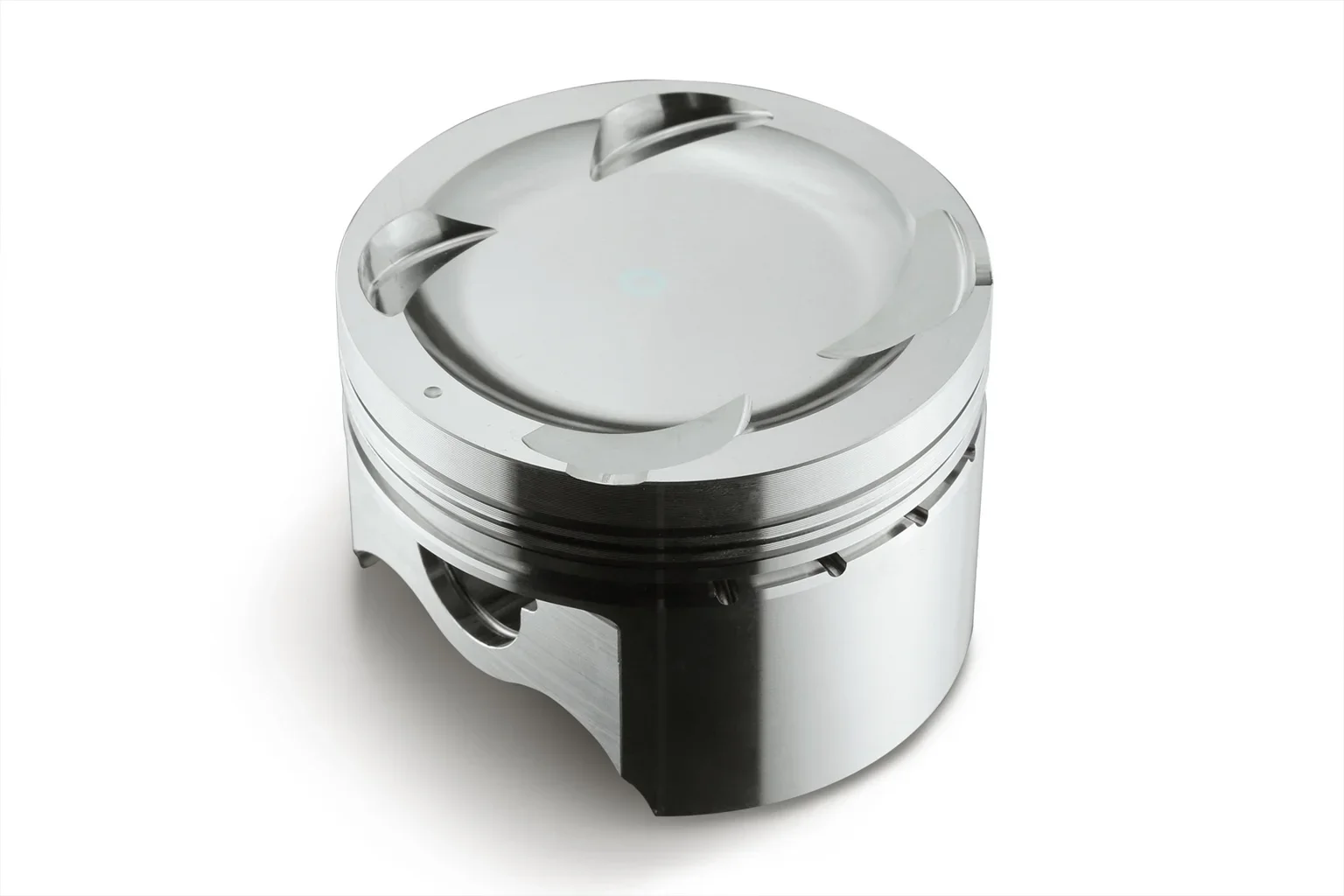

🔧 RSE 2JZ-GTE Forged Piston Set — STD · Bore 86.50mm · CH 34.00mm
The RSE RA202A-TY03F is a forged piston set for the manufacturer-listed 2JZ-GTE application. Its manufacturer configuration designation is STD.
Choose this part by the dimensions and version below, and check it against the complete engine assembly. A configuration designation does not mean every engine with the same name is compatible. Pistons, connecting rods and crankshaft geometry must be matched; replacing an individual component alone does not establish the advertised displacement.
✅ Part number: RA202A-TY03F
✅ Engine code: 2JZ-GTE
✅ Manufacturer-listed vehicles: Toyota Supra JZA80 / Toyota Aristo JZS147 / Toyota Aristo JZS161
✅ Configuration designation: STD
✅ Bore (mm): 86.50 (factory +0.5)
✅ Compression height (mm): 34.00 (factory ±0.0)
✅ Material: A4032

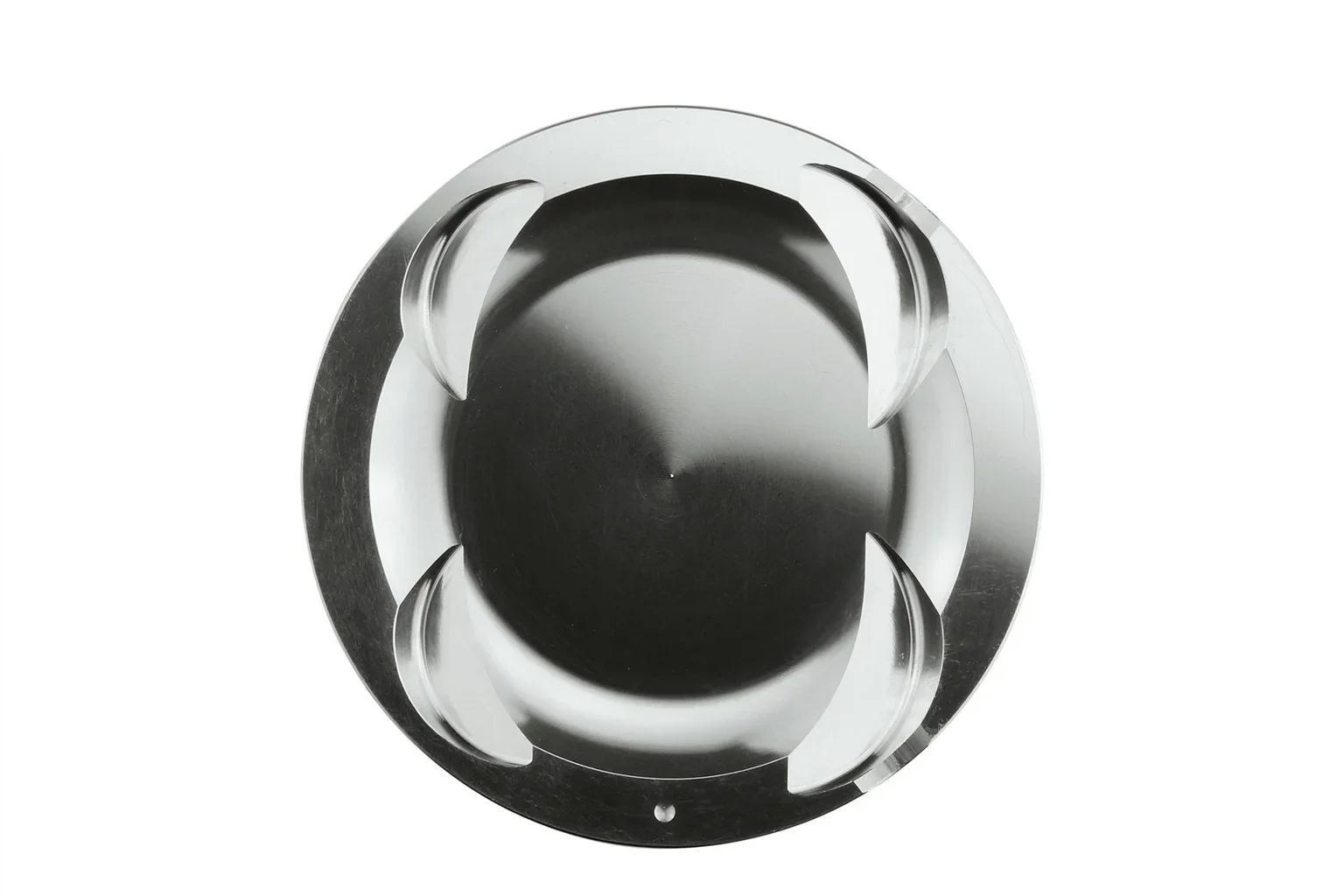

✅ Valve reliefs: Yes

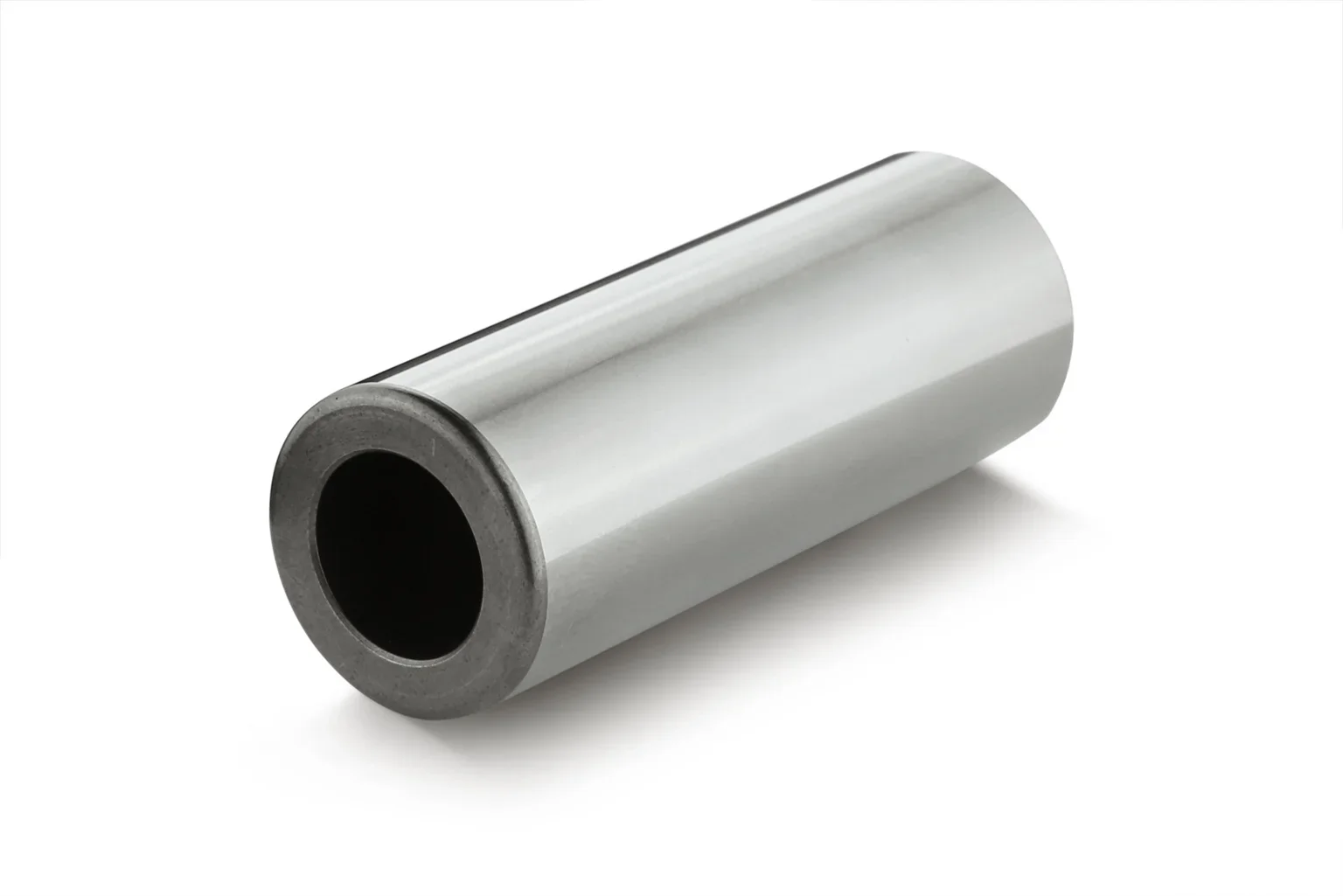

✅ Pin diameter (mm): 22.0
✅ Pin length (mm): 60.0
✅ Crown volume (not compression ratio) (cc): -14.6
✅ Piston weight (g): 361.5
Professional installation requires checking the relevant bearing, pin and rotating-assembly clearances against the manufacturer’s instructions. Confirm machining and supporting-component requirements for the exact build. Product net weight and shipping/package weight are different fields; unconfirmed net weights are not included here.
Contact KM Auto Group before ordering to confirm the complete engine configuration, supplied components and current availability.
AUD $2,238
Available on backorder
