FORGED PISTON SET 4G63 86.00mm CH31.65 (2.2/2.3) CP

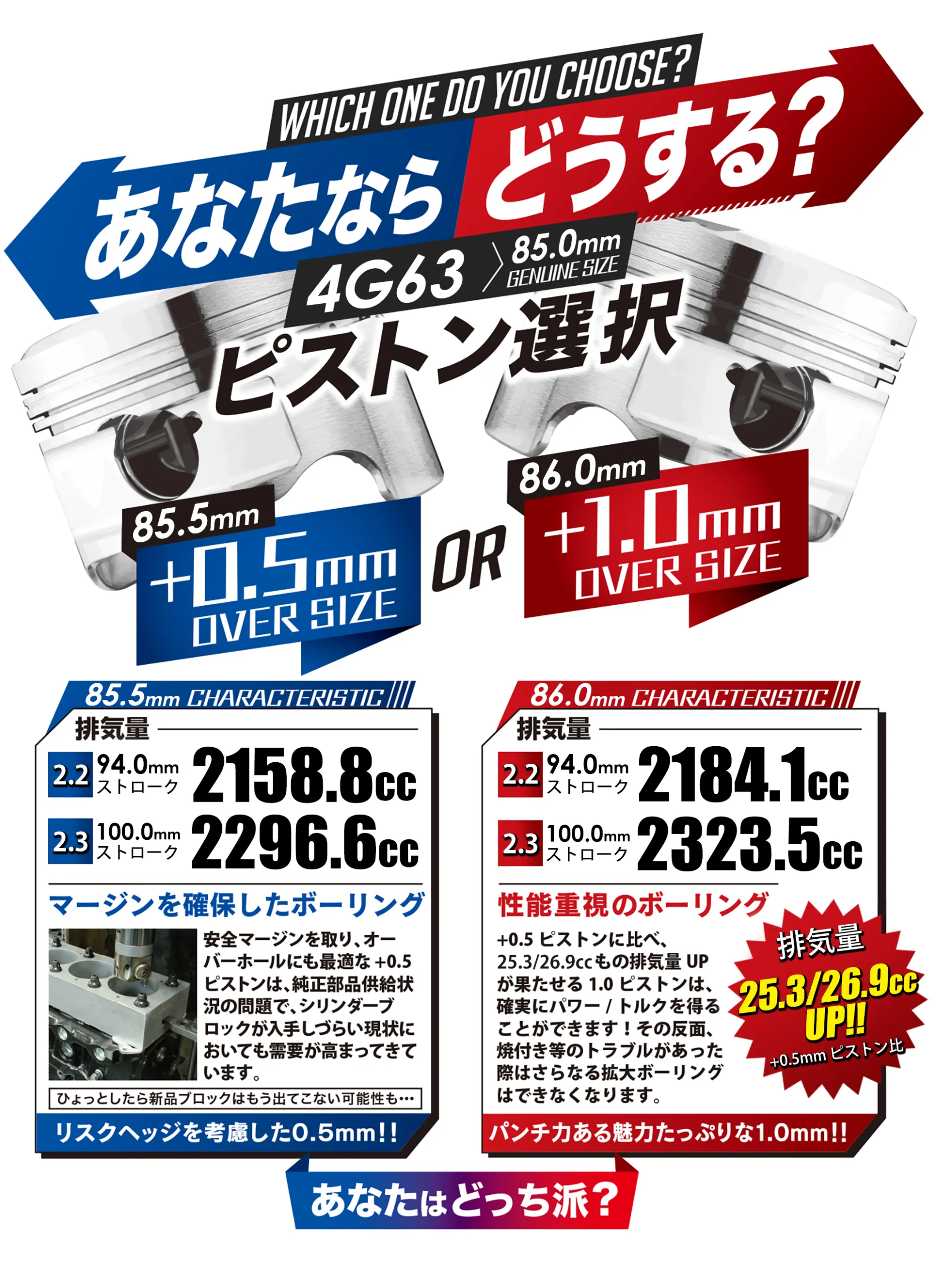

RSE 4G63 bore and stroke comparison. The 86.0mm configurations on the right show 2184.1cc with a 94.0mm stroke and 2323.5cc with a 100.0mm stroke. This illustration does not identify the CP piston version. Final displacement depends on the matched crankshaft and complete engine configuration.
RSE CP Forged Piston Set for Mitsubishi 4G63 – 86.0mm CH31.65 (2.2L / 2.3L)
🔧 Planning a 4G63 stroker engine build?
The RSE 4G63 86mm CP Forged Piston Set, part number RA202A-MT01AP, features A2618 aluminium alloy construction, a 31.65mm compression height and a manufacturer-listed piston crown volume of −19.6cc.
This is the CP piston version for matched 2.2L / 2.3L configurations. The pistons must be paired with the correct crankshaft stroke, connecting rods and engine dimensions. Final displacement depends on the complete engine configuration.
🚗 Listed Applications
• Engine: Mitsubishi 4G63
• Vehicles: Mitsubishi Lancer Evolution I–IX and Eclipse
Vehicle fitment alone does not confirm suitability for an existing engine build. Check the bore size, compression height and supporting components before ordering.
⚙️ Product Specifications
• Brand: RSE — Real Speed Engineering
• Manufacturer part number: RA202A-MT01AP
• Product type: Forged piston set
• Manufacturer category: Block Related / Piston
• Piston version: CP
• Listed build configuration: 2.2L / 2.3L
• Bore: 86.00mm
• Material: A2618 aluminium alloy
• Compression height: 31.65mm
• Piston crown volume: −19.6cc
• Valve reliefs: Yes
• Piston pin diameter: 22.0mm
• Piston pin length: 60.0mm
• Circlip internal diameter: 22.0mm
• Listed piston weight: 335.1g
• Listed piston pin weight: 125.0g
• Combined piston and pin weight: 460.1g
📏 Manufacturer-Listed Ring Dimensions
• Top ring: 1.20 × 2.95mm
• Second ring: 1.20 × 2.95mm
• Oil ring: 2.00 × 2.60mm
Confirm the complete supplied component list and quantities before ordering.
🛠️ Fitment & Installation
Professional engine measurement, machining and assembly are required. Your engine builder should confirm piston-to-wall clearance, ring end gaps, piston-to-valve clearance and the final compression ratio.
This product is a piston set, not a complete stroker kit. Confirm the piston quantity, supplied accessories and any additional parts required for your build.
📩 Need help with your build?
Contact KM Auto Group with your vehicle model, year, engine details and planned crankshaft and connecting rod configuration for assistance with specifications, pricing and availability.
AUD $1,538
Available on backorder
